Heavy-Duty Scaffold Panel & 750mm uPVC uPVC hoarding fence Solution: Temporary Construction Fencing for US Jobsites

I. Executive Summary & Jobsite Solution

The 30-inch (750mm) series uPVC temporary construction fencing system represents an upgraded engineering solution over traditional 20-inch (500mm) paneling. Specifically engineered to meet modern North American commercial construction demands, this structural paneling system dramatically cuts down material waste and minimizes jobsite carbon footprints through its optimized modular design. Whether deployed as a freestanding perimeter fence or integrated as a structural scaffold enclosure, it delivers an all-in-one solution that balances extreme durability, rapid deployment, and structural compliance.

II. North American Standards & Jobsite Safety Compliance

For tier-1 general contractors in the US, compliance and safety are non-negotiable. Our uPVC perimeter fencing system is fully certified to meet and exceed North American engineering criteria:

ASTM E84 Fire Safety Certification: Achieves an outstanding Class B Rating under the ASTM E84 standard for both flame spread and smoke development indices, delivering superior flame-retardant reliability for high-density urban jobsites.

ASCE 7 Wind Load Structural Integrity: Fully compliant with ASCE 7 wind load assessment guidelines (3-second gust parameters), engineered to withstand wind velocities up to 70 MPH for reduced project durations.

Ergonomic Handling & Injury Reduction: A single 7.87-foot (2.4m) main panel weighs less than 18.7 lbs (8.5 kg), translating to a lightweight footprint of just 2.37 lbs/ft (3.53 kg/m). This allows for effortless, single-man installation without the need for heavy lifting machinery, significantly reducing worker fatigue and commercial manual handling liability.

Eco-Friendly & Heavy-Metal Free: Formulated with 100% sustainable materials, completely free of toxic heavy metals such as lead and cadmium, ensuring strict environmental compliance across municipal and federal projects.

III. Maximizing ROI: The Ultimate Jobsite Solution

Compared to traditional, narrow 20-inch (500mm) vertical panels, our 30-inch (750mm) system maximizes your commercial return on investment through optimized spatial efficiency:

+50% Coverage Jump: Each single standard panel provides an effective coverage area of 19.37 sq ft (1.8 m²).

-30.3% Hardware Reduction: Due to wider panel spans and fewer vertical joints, the required volume of system connecting clips drops sharply by nearly one-third.

-20% Labor Cost Savings: Streamlined unit assembly workflows mean your field crew spends 20% less time erecting the perimeter, drastically reducing field labor hours.

IV. Modular System Technical Specifications

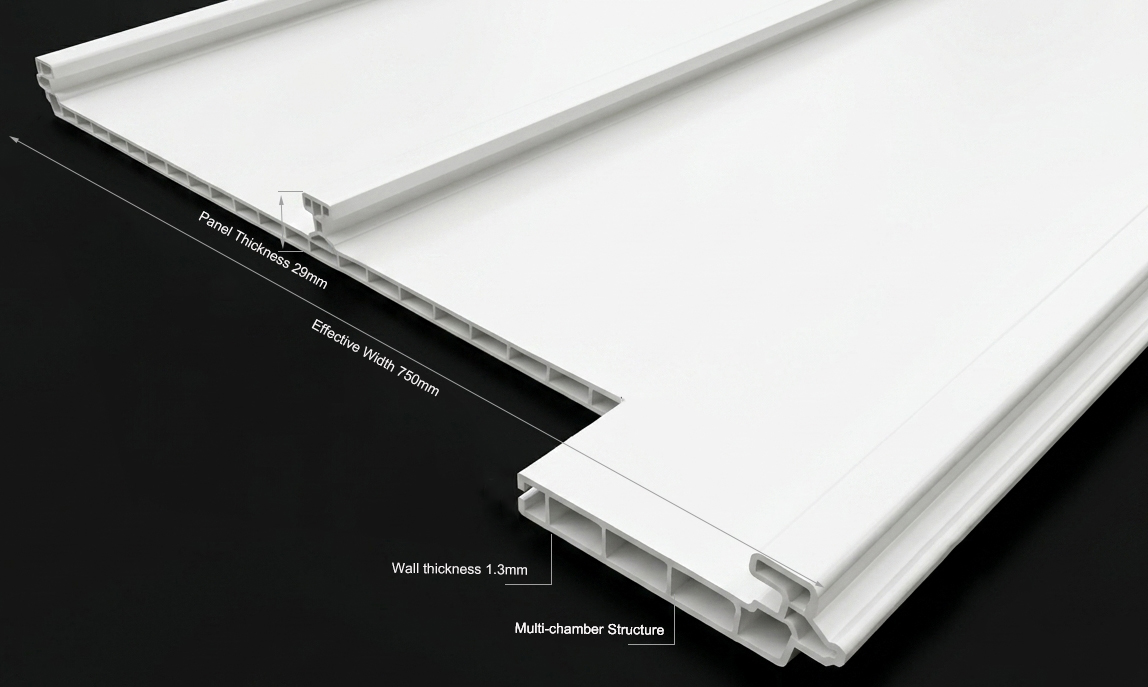

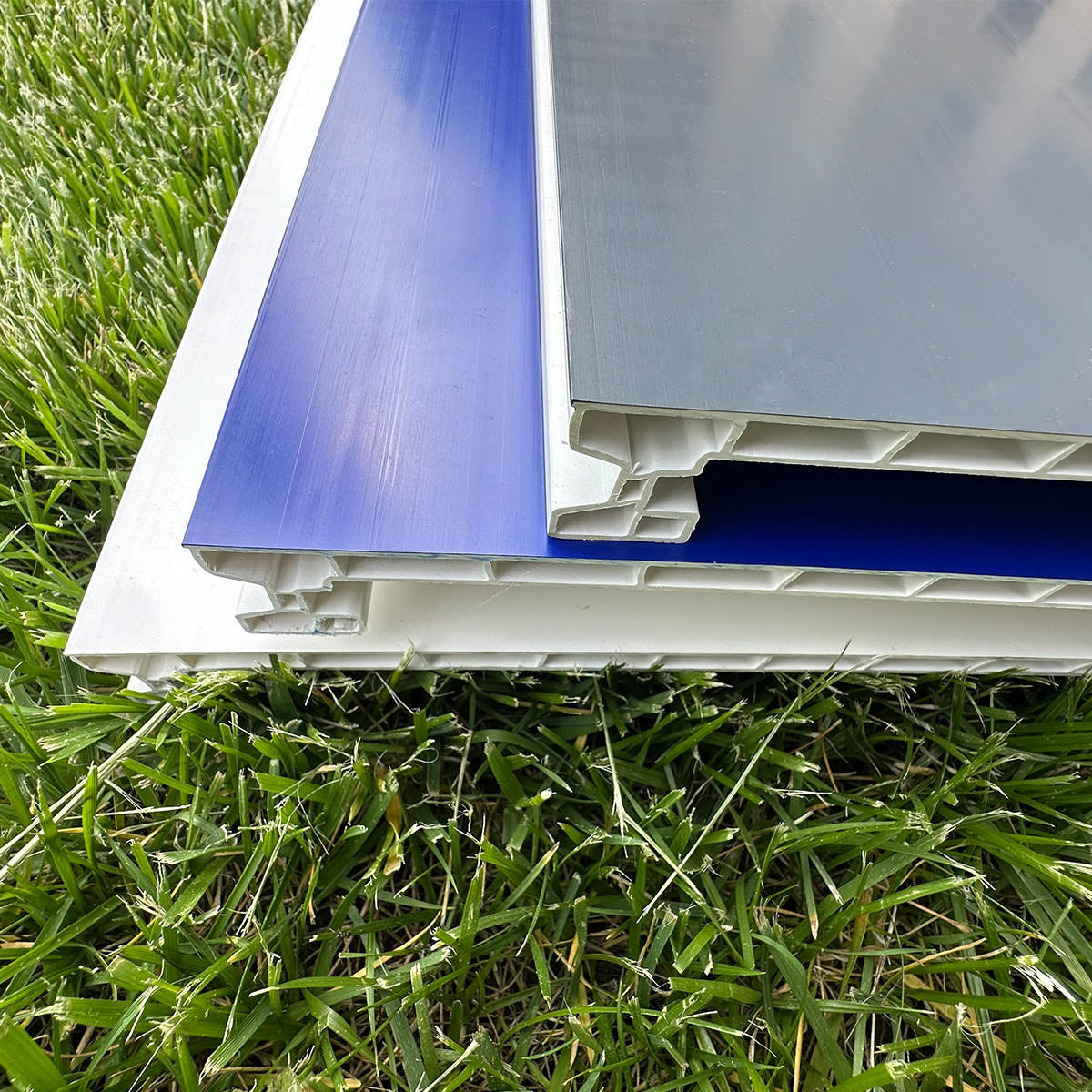

Main Wall Panel (UU 750-01): Features a total width of 2.46 ft (30 inches / 750mm) and a profile depth of 1.14 inches (29mm), built with a heavy-duty 0.047" (1.2mm) main structural wall thickness. Available in an ultra-bright white finish with customizable color co-extrusion options.

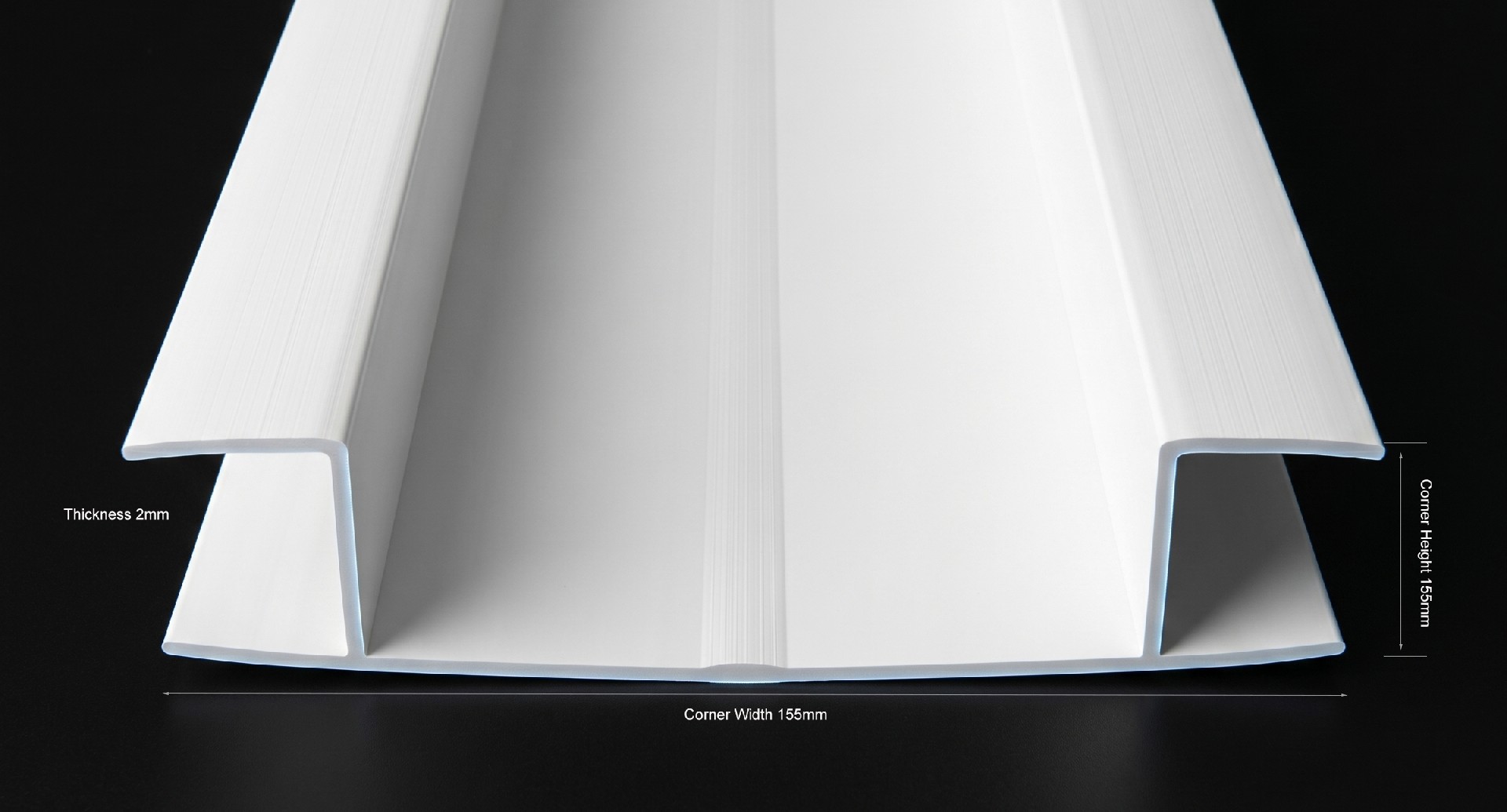

Smart Interlocking Corner System (UU 750-02): Utilizing an innovative dual-durometer soft/hard co-extrusion profile, it allows for stepless 45° to 180° radius adjustments. This completely breaks through rigid 90° layout constraints to follow complex, irregular property lines.

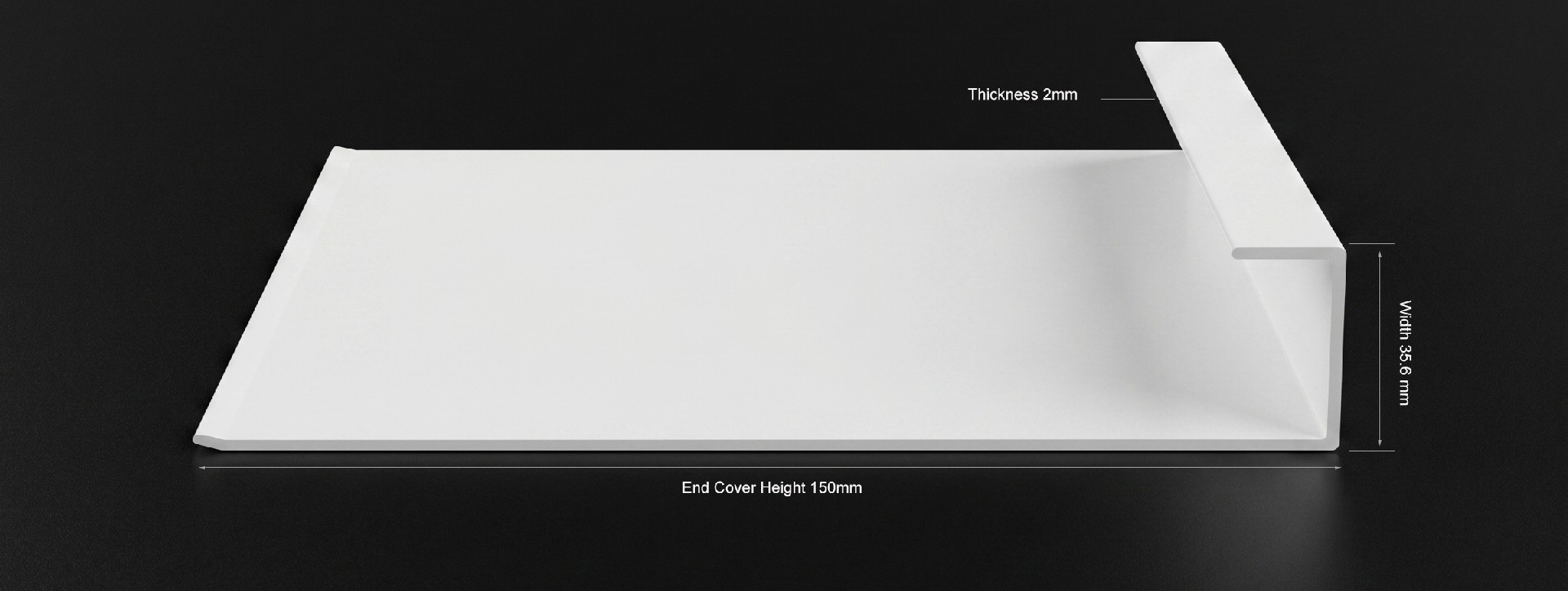

Dust & Water Proof Trim System (UU 750-03): Specialized 5.9-inch (150mm) wide-span top and bottom end caps seamlessly seal the system, preventing rainwater, mud, and onsite dust from invading the hollow chambers.

V. Freestanding & Scaffold Integration Engineering

Our temporary site fencing features premium multi-foundation adaptability to anchor securely across various US geographic terrains:

Heavy-Duty Ground Screw Foundation: Engineered for direct soil intrusion, integrating a 3.5" x 63" (89x1600mm) main ground screw with a 2.36" x 51" (60x1300mm) rear diagonal structural brace. Connected via standard 1.9-inch (48.3mm) outer diameter Q235 steel pipes, scaffold sleeves, and putlog couplers, this configuration delivers a maximum ultimate wind pressure resistance of 480 Pa.

Cement Block/Pier Foundation System: Perfect for concrete pavement and urban municipal projects where ground penetration is restricted. This ballast-weighted solution resists a maximum ultimate wind pressure of 578 Pa, ensuring the fence stands rigid against heavy gusts.

VI. North American Supply Chain & Logistics Guarantee

High-Density Container Loading: Through advanced spatial packaging optimization, a single 40HQ ocean container tightly packs up to 33,034 sq ft (3,069 m²) of effective fencing. This maximizes container utilization, eliminating unnecessary ocean freight overhead and cutting transit-related carbon emissions by 14.8%.

Rapid Turnaround & Dispatch: Backed by an agile factory manufacturing matrix, we guarantee a swift 4-day production lead time for a full 40HQ container paired with a strict 72-hour corporate order response window, shipping reliably under competitive FOB Qingdao logistics agreements.

Long-Term Performance: Built with an advanced UV-stabilized, weather-resistant outer co-extrusion layer, backed by a premium 10-year anti-aging warranty for repeated commercial deployment.
