Introduction

For manufacturers in the door, window, and industrial component sectors, sourcing high-quality custom plastic extrusions is fraught with challenges. The most common bottleneck? Mold development. When a supplier relies on third-party toolmakers, a simple profile iteration can take months. At Upper Unions New Material, we’ve eliminated this barrier. By integrating advanced in-house tooling with state-of-the-art co-extrusion technology, we deliver complex, custom profiles at unprecedented speeds.

The Outsourcing Bottleneck vs. In-House Agility

When an extrusion factory outsources its die manufacturing, it loses control over the timeline. Revisions become a logistical nightmare of shipping metal back and forth.

By maintaining a fully equipped, in-house tooling workshop, Upper Unions takes full ownership of the development lifecycle. From the moment we receive your CAD drawings, our engineers run flow simulations and begin CNC machining. This streamlined process allows us to bring new, highly customized molds from concept to test-run in as fast as 15 to 20 days.

Mastering Complex Co-Extrusion Profiles

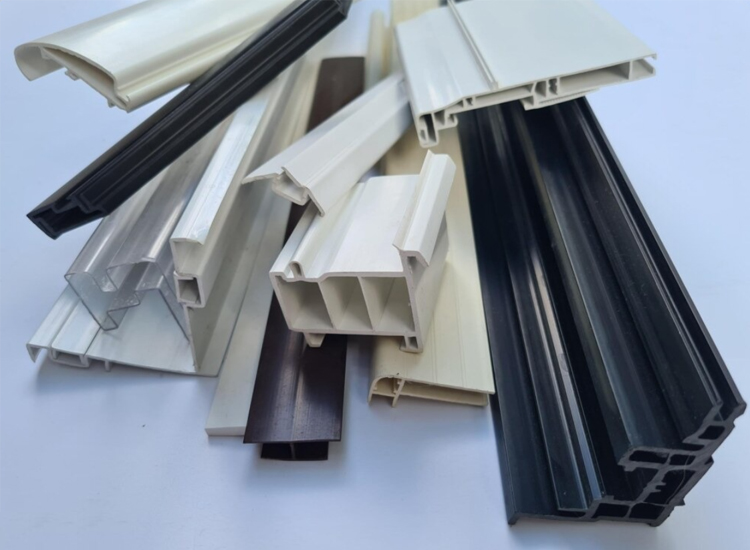

Speed means nothing without precision, especially when dealing with co-extrusion. Modern profiles—such as specialized 150mm or 180mm multi-chamber designs—often require co-extrusion to balance cost and performance.

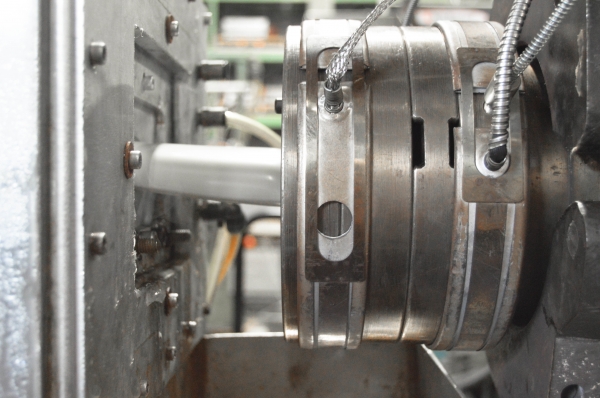

For instance, applying a high-grade, UV-resistant virgin UPVC outer shell over a structural, recycled core requires absolute precision in the die design to maintain steady material flow and uniform wall thickness. Our in-house tooling engineers work directly alongside the extrusion floor. This immediate feedback loop ensures that flow channels are perfectly calibrated, eliminating issues like warping, uneven surfaces, or weak structural webbing.

Ensuring Dimensional Stability

Whether you are developing a proprietary window frame system for the North American market or specialized industrial tracks, dimensional tolerances are non-negotiable. Our rapid prototyping capability allows us to conduct real-world extrusion trials, make micro-adjustments to the die on the same day, and lock in the ideal cooling calibration before mass production begins.

Conclusion

Your supply chain shouldn't be held up by inefficient mold makers. Partnering with a manufacturer that controls both the tooling and the extrusion processes ensures that your custom profiles hit the market faster and perform flawlessly.

Have a specific profile design in mind? Send your CAD drawings to our engineering team at Upper Unions today for a free feasibility assessment and tooling quote.
