Premium 750mm Scaffold PVC Hoarding Fence Fixing Clamp | Secure & Reusable UPVC Scaffold Clip

Premium 750mm Scaffold PVC Hoarding Fence Fixing Clamp | Secure & Reusable UPVC Scaffold Clip

1. Introduction

Upgrade your site security and aesthetics with our top-tier Scaffold PVC Hoarding Fence Fixing Clamp.

Designed to integrate perfectly with 750mm and standard UPVC hoarding systems, this heavy-duty zinc-plated metal clip seamlessly attaches PVC hoarding panels directly to standard 48.3mm scaffold tubes. It creates a highly stable, safe, and professional construction enclosure without the need for drilling or damaging the panels.

2. Key Advantages & Features

• Fast & Effortless Assembly

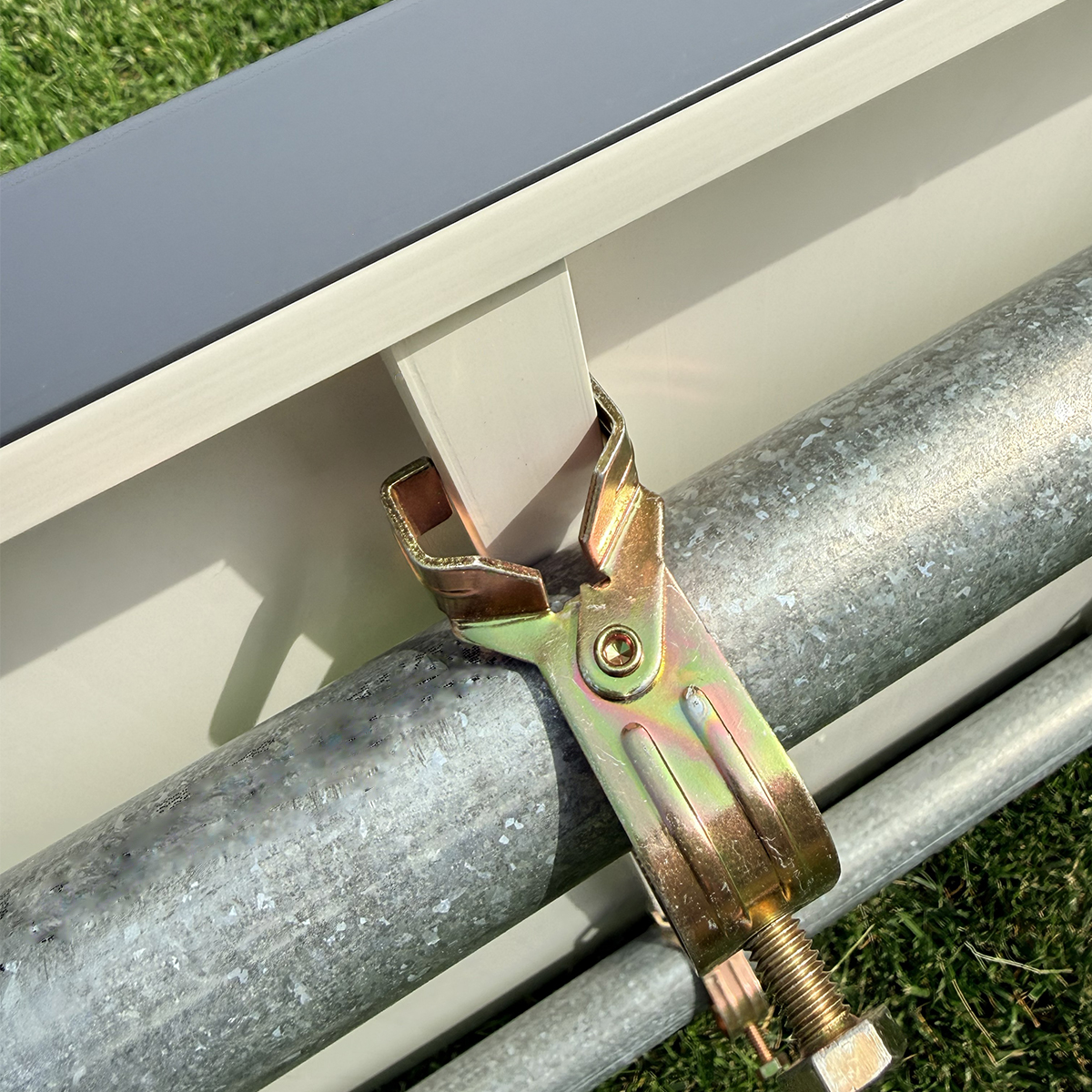

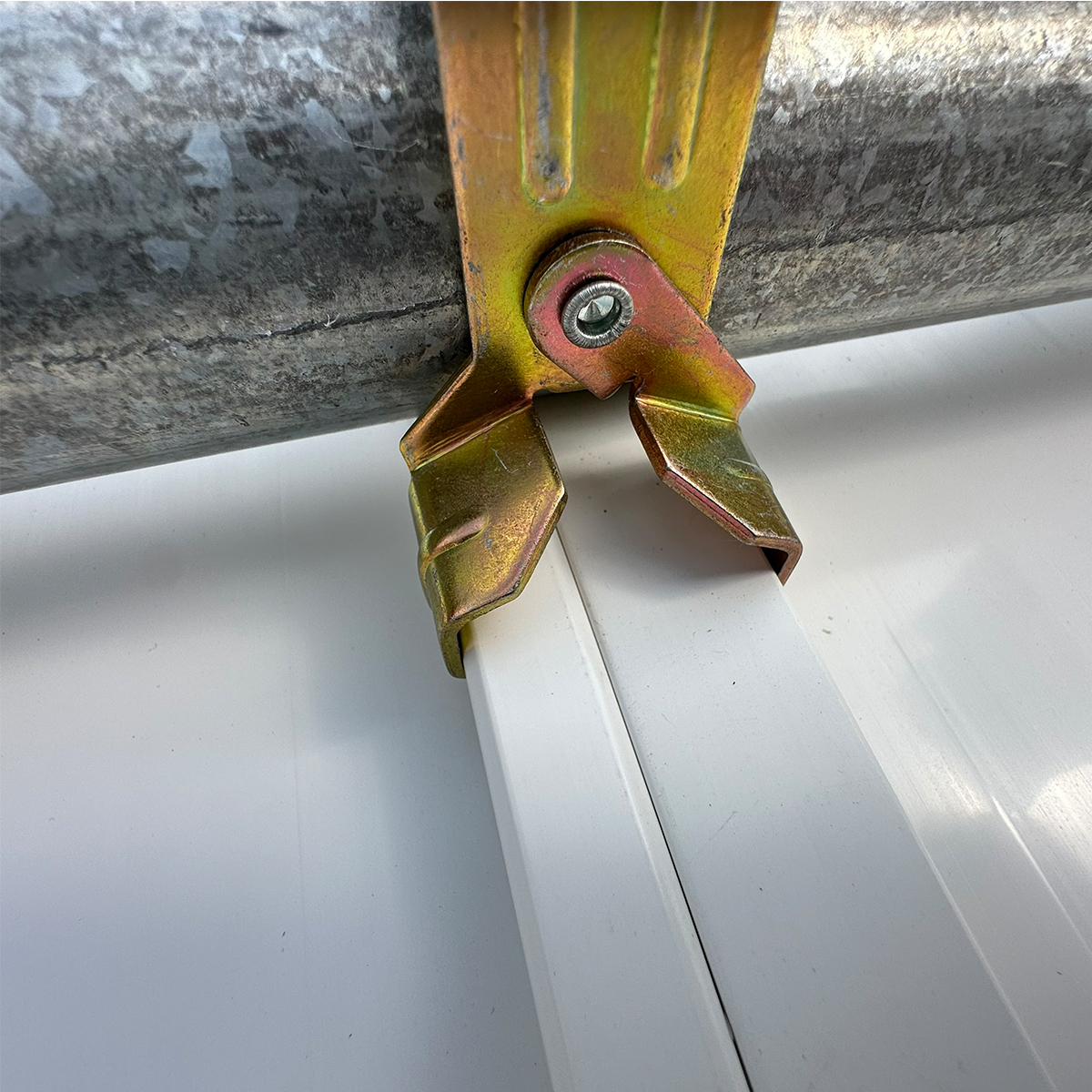

  Say goodbye to time-consuming setups. The unique interlocking jaw design securely grips the rear moulded clip rail of your UPVC hoarding panels. As you tighten the U-bolt, the clamp automatically locks the board into place.(告别耗时的搭建。独特的互锁夹爪设计能紧紧咬合UPVC面板背部的模压轨道，拧紧螺栓即可自动锁定。)

• Heavy-Duty Durability

  Manufactured from high-strength carbon steel and treated with a premium yellow zinc-plated finish (as pictured). It offers exceptional rust, weather, and impact resistance for long-term outdoor exposure.

• 100% Reusable & Sustainable

  Contribute to a higher BREEAM rating and "Zero Waste to Landfill." Our fixing clamps are completely re-locatable and can be re-used over many years across multi-phase projects.

• Enhanced Safety & Clean Aesthetics

  Ensures a flush fit that eliminates gaps, providing highly effective debris control, wind resistance, and pedestrian protection. The smooth external finish is also ideal for mounting site graphics and advertising.

3. Technical Specifications

To meet the strict requirements of temporary works design, here are the detailed parameters:

• Product Name: Scaffold PVC Hoarding Fence Fixing Clamp

• System Compatibility: Designed for 750mm modular UPVC Hoarding / Clip to Scaffold systems

• Scaffold Tube Fit: Standard 48.3mm (1.5 inch) OD galvanized scaffolding tubes

• Material: High-strength Carbon Steel

• Surface Finish: Yellow Zinc Plated (Anti-corrosion)

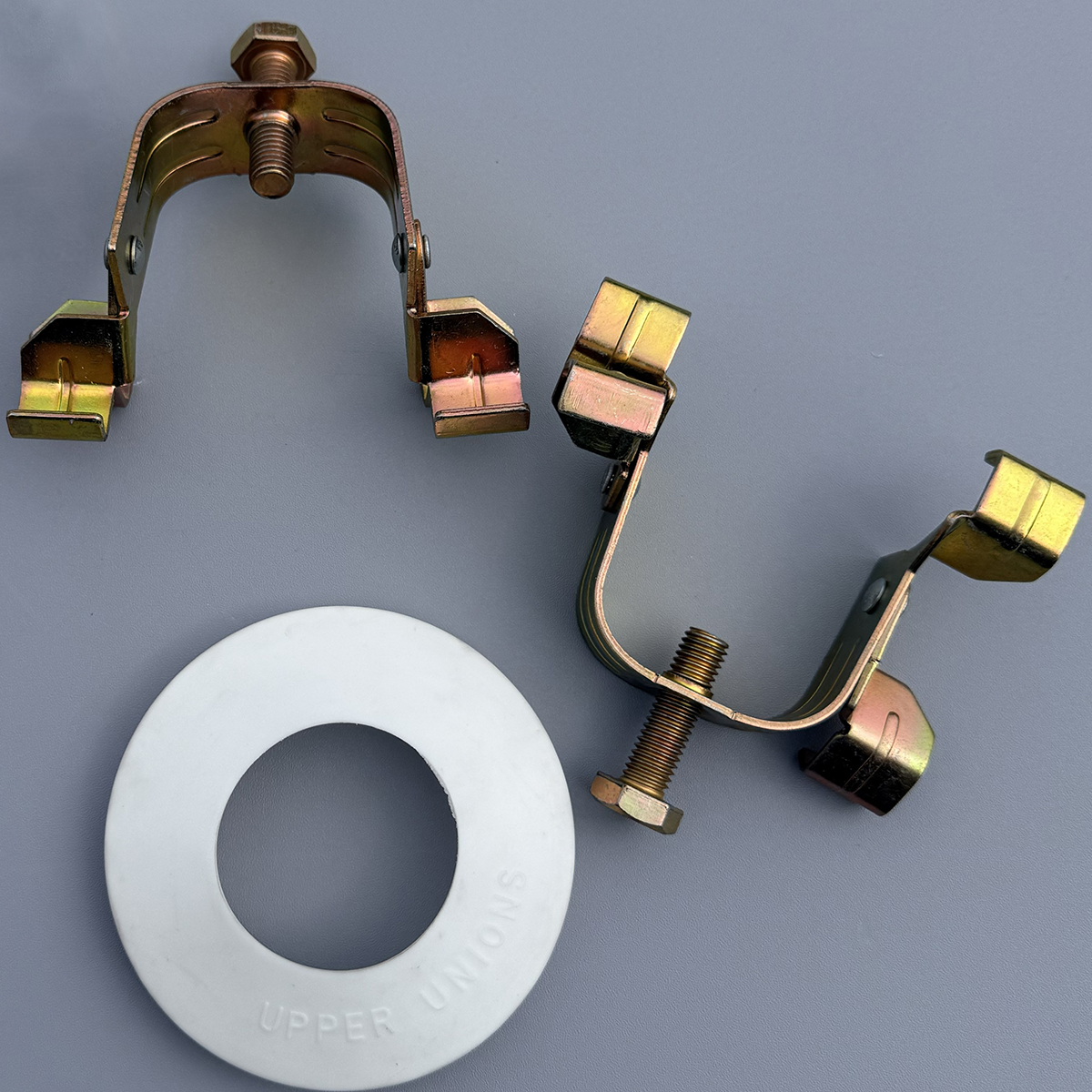

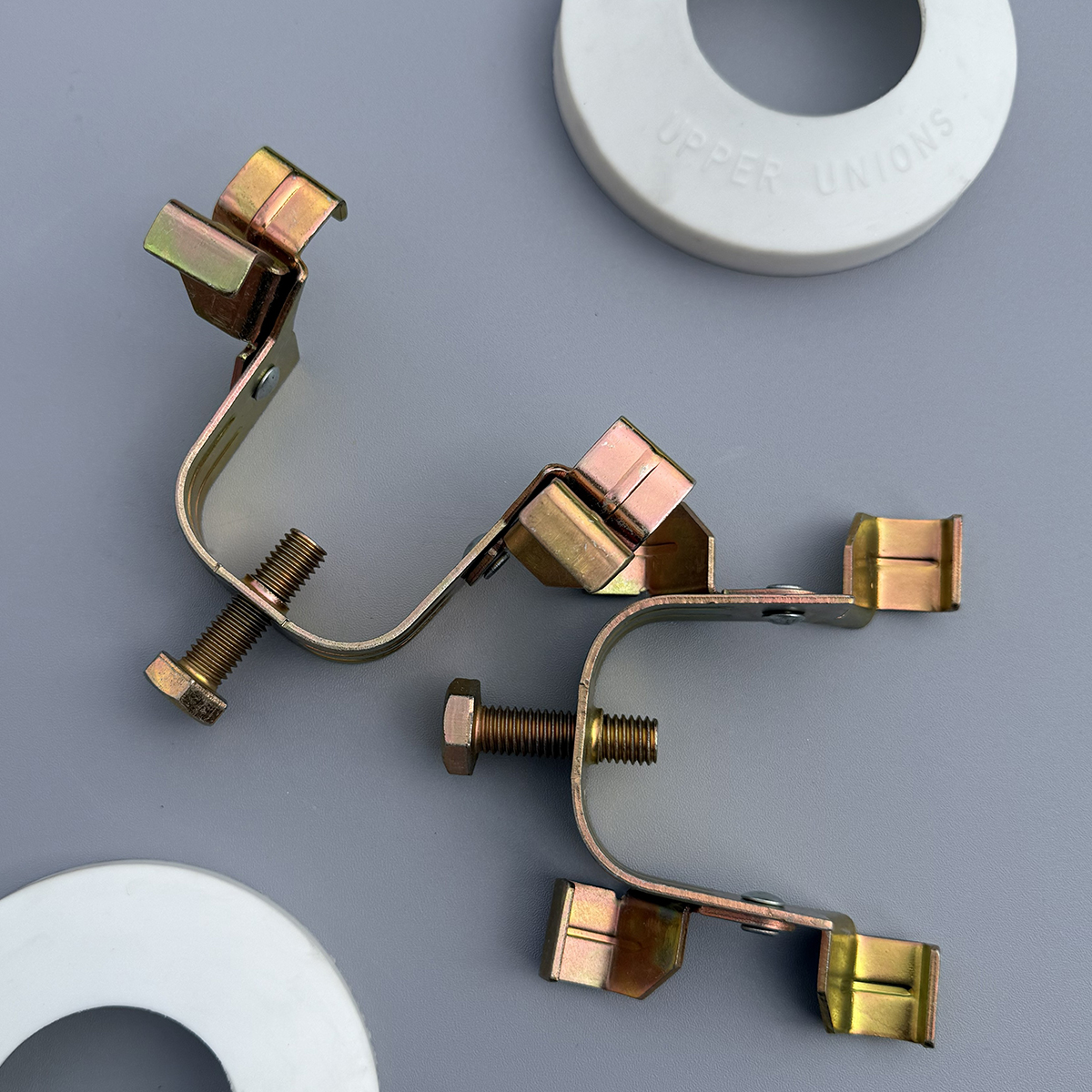

• Component Structure: U-shaped base, interlocking claws, threaded bolt, and hex nut

4. Applications

• Construction & Renovation Sites: Quick temporary barriers for both indoor and outdoor worksites.

• Pedestrian Walkways: Safe street-level protection around scaffolding where trade teams are operating.

• External Facade Repairs: Ideal for enclosing scaffolding matrixes that are already in place on commercial buildings.

5. Installation Guide

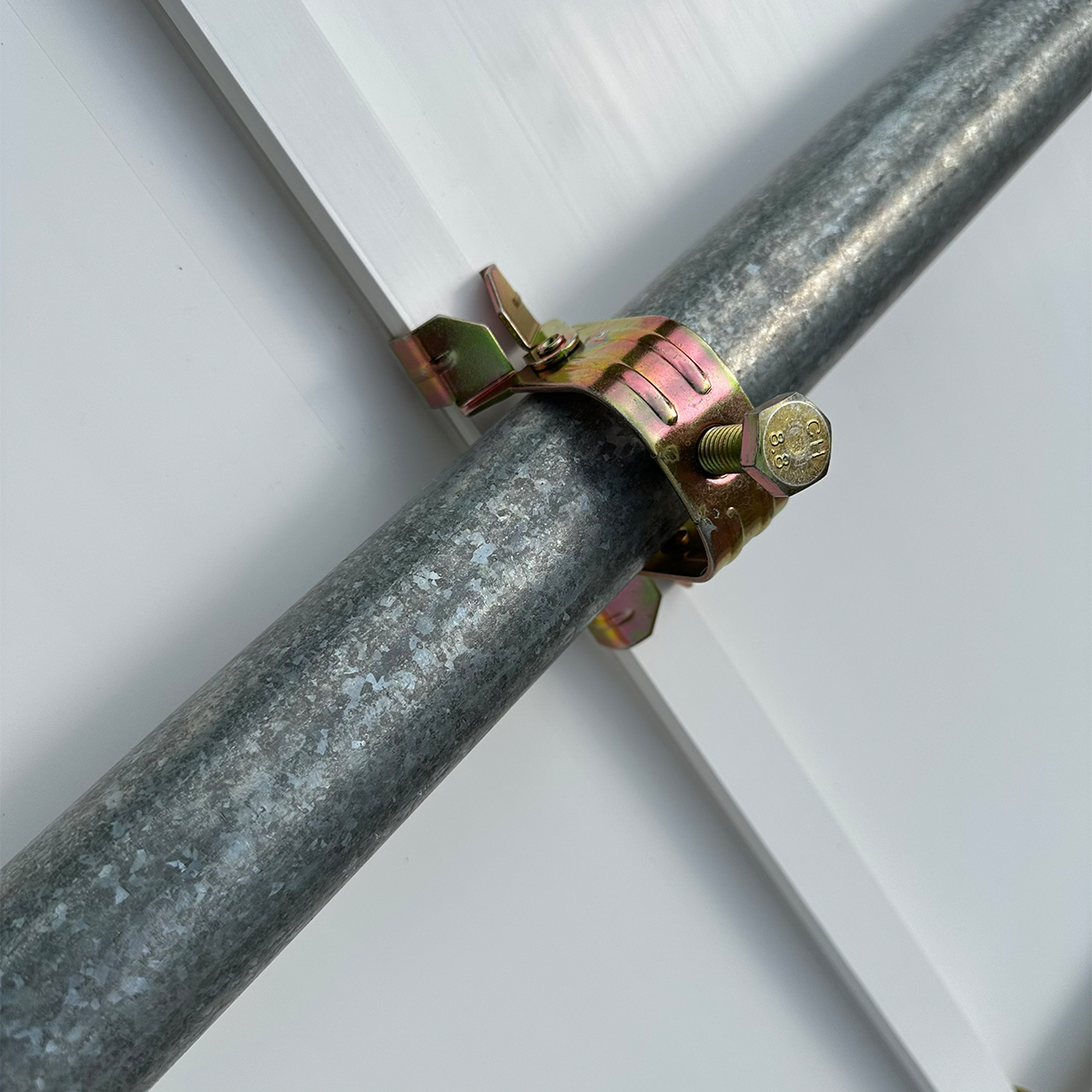

• Step 1: Position the U-base of the fixing clamp around the horizontal or vertical 48.3mm scaffold tube.

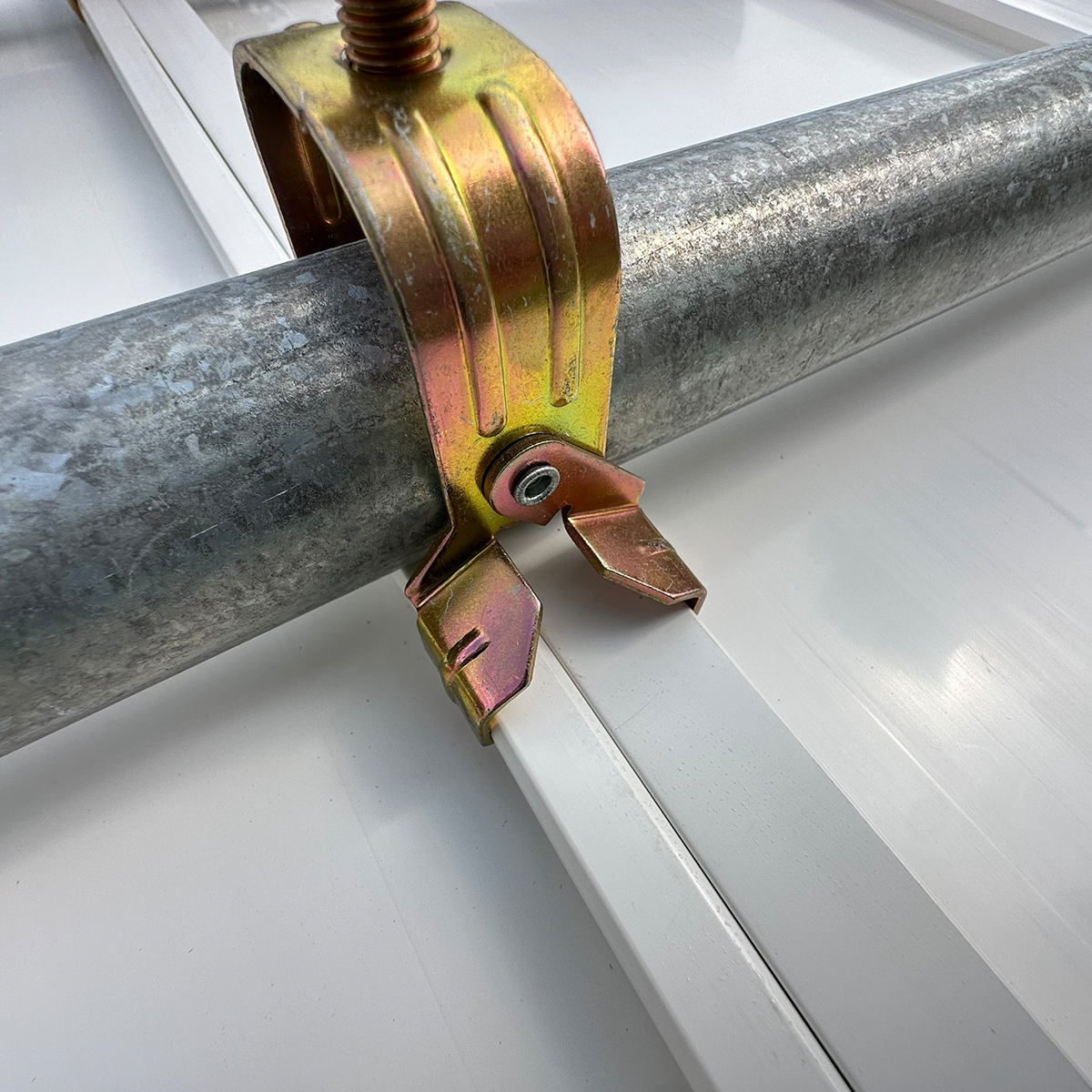

• Step 2: Align the top interlocking jaws with the built-in tracking channel on the rear of the 750mm UPVC hoarding board (as shown in the reference image).

• Step 3: Use a standard wrench to tighten the hex nut on the threaded bolt. The jaws will firmly compress and lock the PVC board to the scaffolding structure.

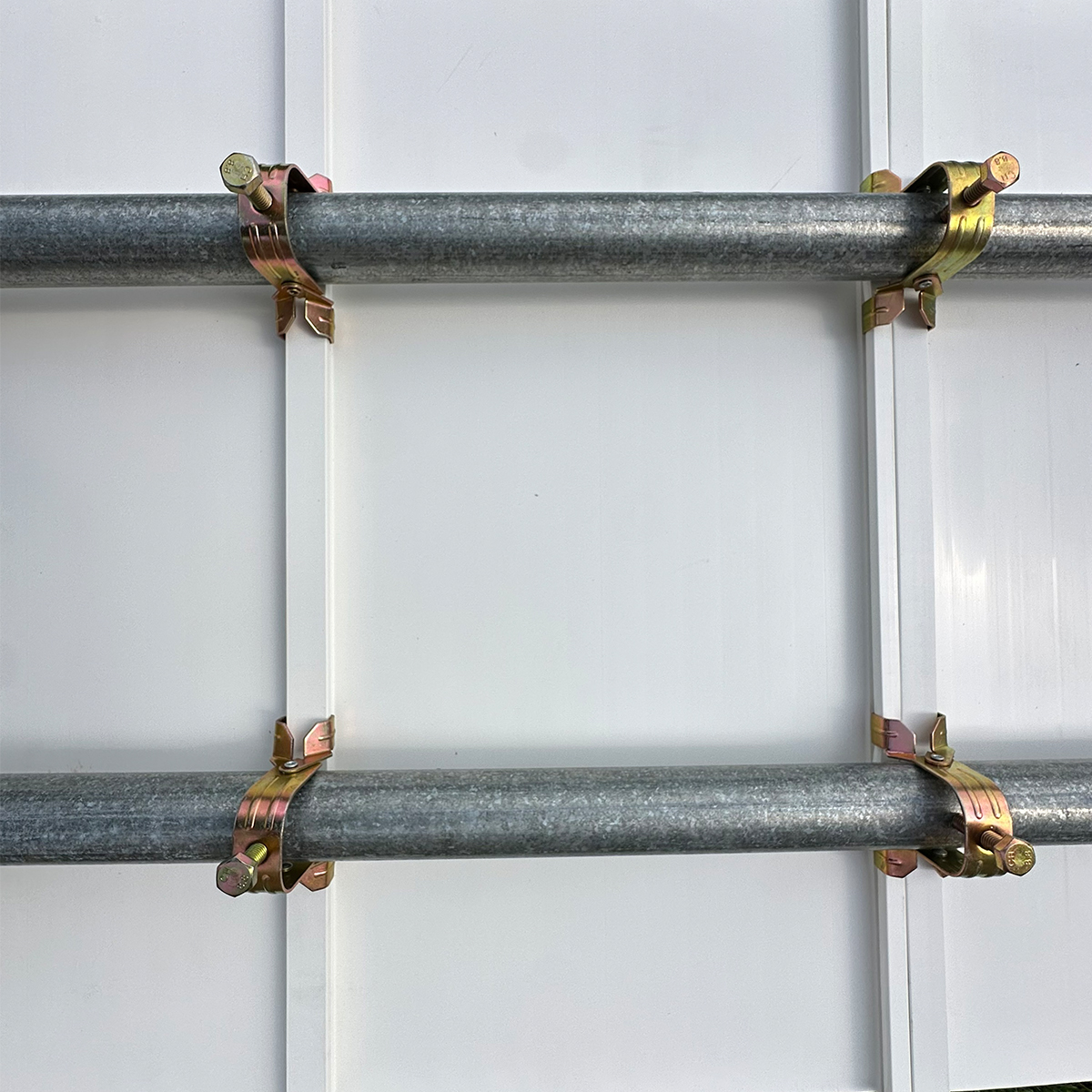

• Step 4: Repeat the process along the hoarding run to create a seamless, weatherproof barrier.
